10 photos including floor plans.
Model PL222
PL222 Accessible Portaloo 2.22m
- Factory quote available
- Warranty confirmed in your quote
- Delivered Australia wide
The wheelchair access unit in the plastic range: roomy, wide door and a grab rail.
Future Modular Homes · Quote only
Why buy from Future Modular Homes? See who we are →
Pricing
Request a quote
The largest unit in our plastic range, built for wheelchair access with an 890 mm wide door, a roomy interior and a balustrade grab rail. Event operators, councils and hire fleets use it where an accessible amenity is needed without a steel cabin build.
- Delivery
- Australia wide by truck and crane. We deliver and build worldwide, so tell us where the block is.
- Lead time
- Confirmed in your quote. Build slots move, so we quote the real date rather than a brochure figure.
- Project support
- From initial design through to delivery, our team helps coordinate the process and keeps you updated along the way.
- Minimum order
- 1 unit
What is included with your PL222 Accessible Portaloo 2.22m
Every unit is built to order and arrives complete to this specification.
- External dimensions. 2,218 x 1,707 x 2,298 mm (L x W x H)
- Door. 890 x 1,900 mm, wheelchair width
- Weight. About 160 kg
- Material. HDPE
- Tanks. 38 litre sink tank, 61 litre waste tank
- Flush. Hand pump fresh flush, self contained with no water or power connection needed
- Access. Balustrade grab rail, wide door, spacious interior
About this model
What it is

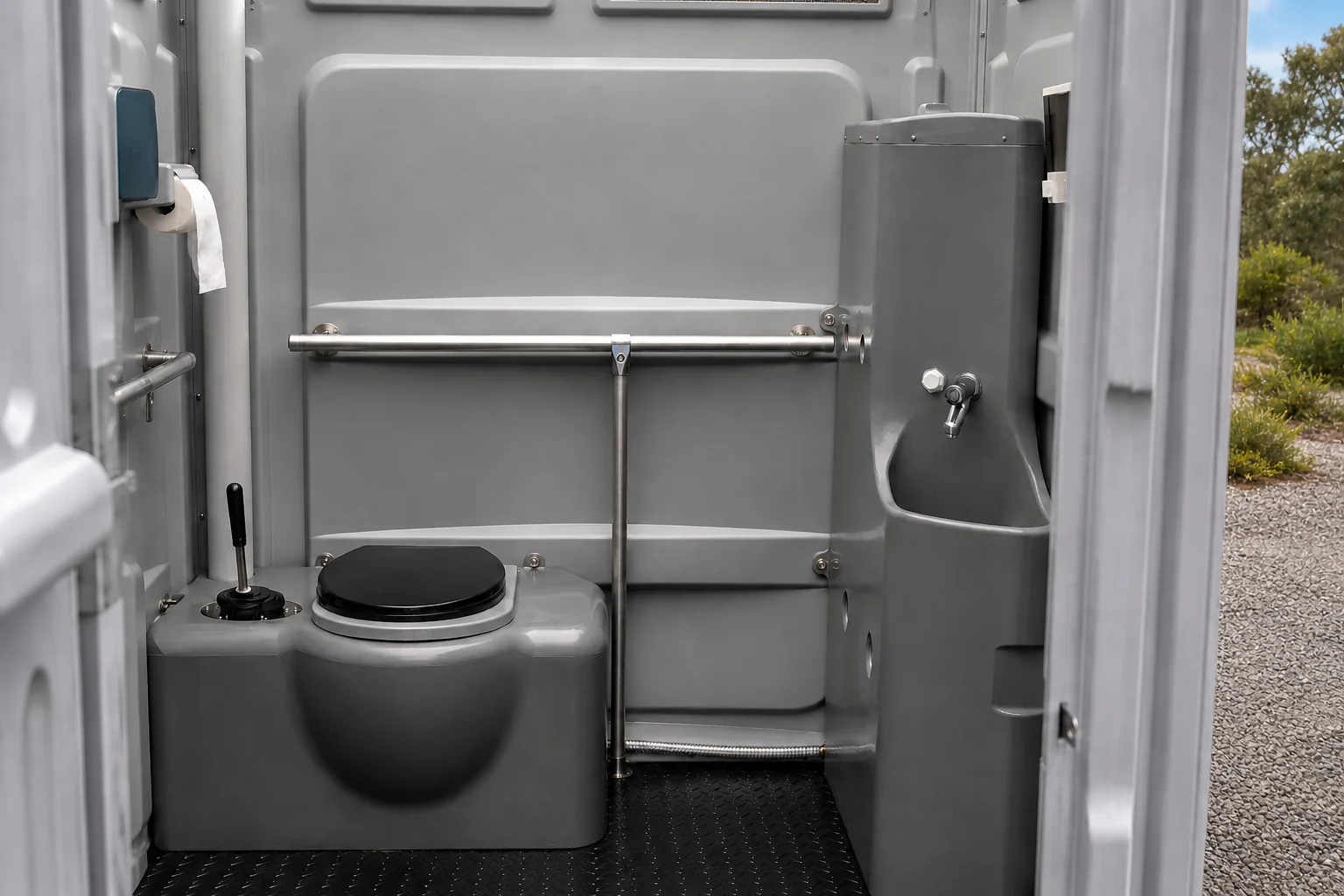

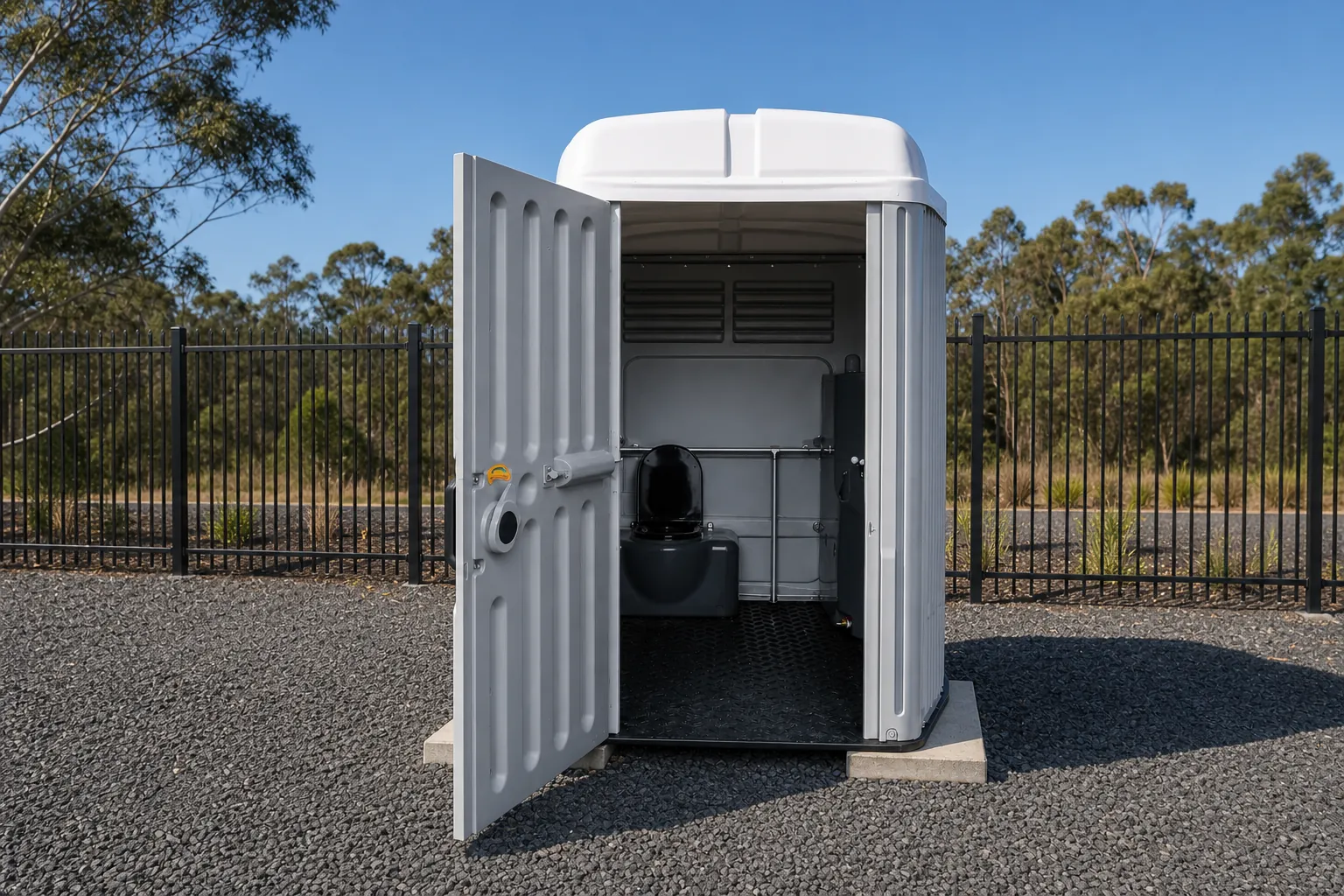

The PL222 is the largest and roomiest unit in the plastic range and the one built for wheelchair access. It has an 890 mm wide door instead of the narrow door on a standard portaloo, a spacious interior and a balustrade grab rail beside the pan.
In Australia this is the accessible option in the fast deploy tier, aimed at festivals, agricultural shows, sporting carnivals, markets, beaches and public reserves that need an accessible amenity for a season or a weekend rather than a permanent structure. If the amenity has to be permanent and certified accessible design is the priority, the steel accessible units with a fixed ramp are the better conversation.
How it is built

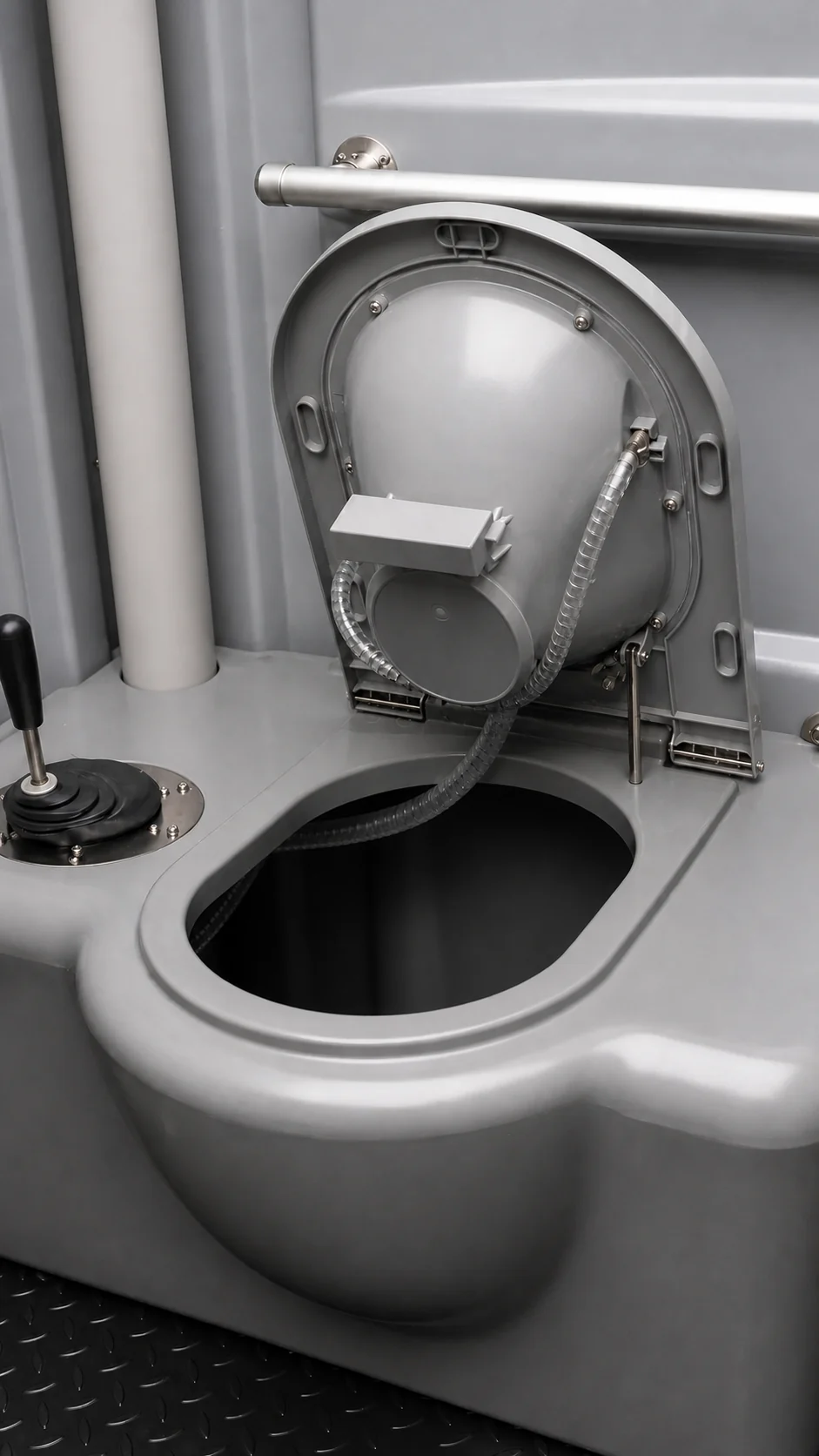

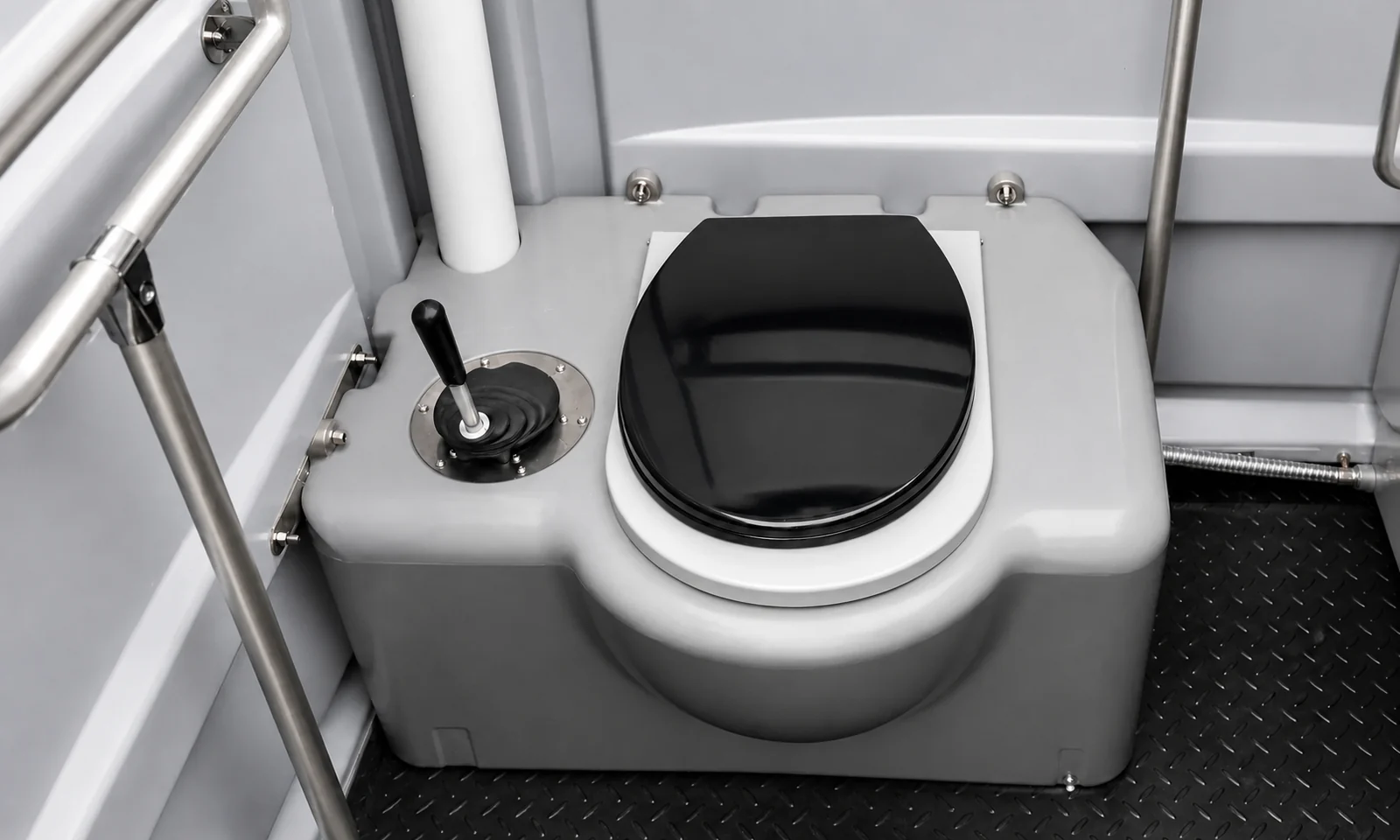

It runs a hand pump fresh flush system with a 38 litre sink tank and a 61 litre waste tank, so it is fully self contained with no water or power connection needed, and it can be fitted with a set of four lifting hooks for crane or hiab placement as an option. Occupied signage, a paper holder and a lock come as standard.
Delivery and freight
Units ship by sea and travel by road, and freight is quoted for your port and quantity.
Spec sheet
Specifications
| External dimensions | 2,218 x 1,707 x 2,298 mm (L x W x H) |
|---|---|
| Door | 890 x 1,900 mm, wheelchair width |
| Weight | About 160 kg |
| Material | HDPE |
| Tanks | 38 litre sink tank, 61 litre waste tank |
| Flush | Hand pump fresh flush, self contained with no water or power connection needed |
| Access | Balustrade grab rail, wide door, spacious interior |
| Options | Set of four lifting hooks for crane or hiab placement |
| Compliance | Designed for wheelchair access, not a certified AS 1428.1 unit |
| HS code | 9406900090 |
| Price | Factory quote available |
Final specifications are confirmed in writing with your quote. Built to order as a self-contained portable sanitary unit, with product documentation supplied.
Quote enquiry process
How an enquiry works
A quote enquiry is not an order. Nothing is committed until you have a written quote naming the scope, the price and the delivery terms.
- 1
Tell us the block
Send the model, your suburb or postcode and what the block is like. Access, slope and crane room change the price more than anything else.
- 2
Get a Free Quote
A written quote covering the unit, freight to your address, and what is and is not included.
- 3
We start your build
We lock in your design with you and then we coordinate with our builders to begin production.
- 4
Delivery and set down
We coordinate the delivery process from factory to site, ensuring your home arrives safely and is positioned at your property with everything planned ahead of time.
Frequently asked questions
Is it a certified AS 1428 accessible unit?
No. It is designed for wheelchair access with an 890 mm wide door, a roomy interior and a balustrade grab rail, but it is not a certified AS 1428.1 unit. If certified compliance is mandated for your event, venue or council contract, confirm that requirement with us before you order so we can talk through the steel accessible options instead.
Does it need water, power or plumbing?
No. It is self contained. The hand pump draws from the 38 litre fresh tank for the flush and basin, and waste collects in the 61 litre tank for pump out. Nothing connects to sewer or mains, which is what makes it practical for festivals, beaches, showgrounds and reserves where no services are available.
Do I need council approval?
Requirements vary by council, venue, site and intended use. Before deployment, confirm building and plumbing approvals, public-health and wastewater controls, accessible unit numbers, access-path conditions, licensed-trade requirements, servicing and waste-removal arrangements with the relevant authority. Confirm every applicable condition in writing before the unit is ordered or placed. Keep that written confirmation with site file.
How often will it need servicing?
The 61 litre waste tank is smaller than the toilet only heavy duty unit, so expect more frequent pump outs at a busy event. Accessible units often see steady rather than heavy traffic, but plan servicing on the same run as your standard units and make sure the truck can reach it without blocking the access path.
What ground and approach does it need?
Firm, level ground and a safe, even approach path so a wheelchair user can reach and enter the door without a lip or a soft edge. Grass, sand and gravel usually need matting or a temporary path. Place it near the accessible parking or the main accessible route rather than at the end of a row of standard units.
How is it delivered and moved on site?
It ships by sea and travels by road to your site. At about 160 kg and 2,218 mm long it is bigger than a standard booth, so plan the truck approach and the placement. The optional set of four lifting hooks lets a crane or hiab place it directly, which is worth adding if you move units between events.
How does it compare to the steel accessible units?
Different jobs. This is the fast deploy plastic option for events and seasonal use, self contained and easy to move. The steel accessible units are semi permanent, insulated, come with a fixed ramp and handrails and connect to mains water, sewer and power for councils, venues and care facilities. Neither is certified to AS 1428.1 without review.
What warranty applies?
Warranty terms are confirmed in writing with your quote and order documents, and cover manufacturing defects in the moulded shell, tanks, grab rail and hardware. Wear items such as seals, the hand pump and door hardware, plus damage from misuse, vandalism or rough handling, sit outside warranty. Fleet buyers usually order a spares kit with the first shipment.
Owner feedback
Future Modular Homes has delivered homes to buyers across Australia and has been featured in Domain. We publish feedback from real buyers only, so this model shows none until a verified owner sends one in.
