MD38 A Frame Cabin 38m2

Finished. Unlike our flat pack capsules, this cabin is built complete in the factory, delivered on a truck and craned onto a prepared slab or piers, then levelled and fixed down. Your licensed electrician and plumber connect the services. There is no assembly crew and no weeks of trades working on your block.

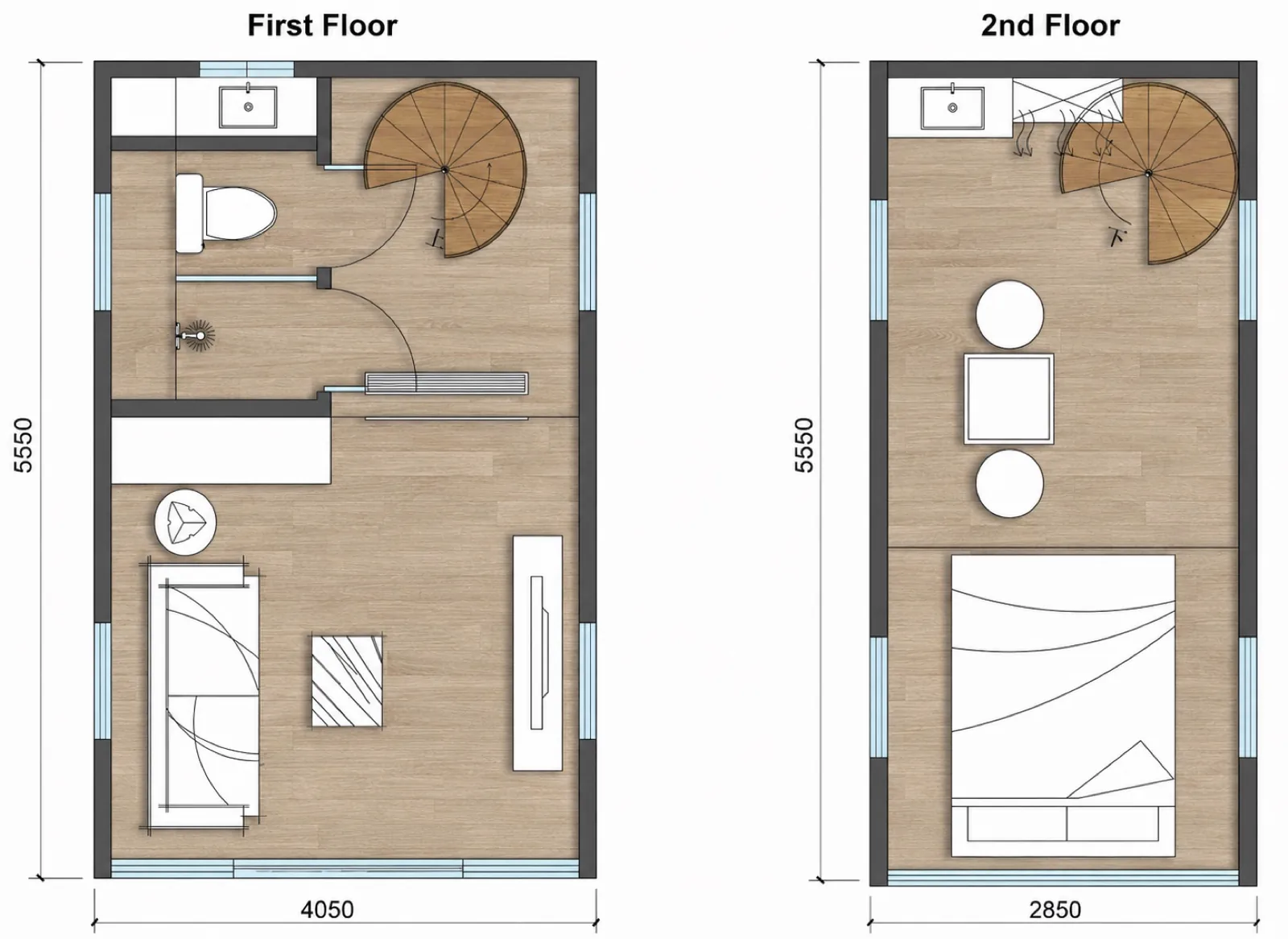

It arrives in one piece, so you need a firm truck path, a level hardstand (firm, level ground that will take the weight of a truck or crane) within crane reach and clear air space over the drop zone. The compact 5.55 m by 4.05 m footprint helps, but the crane still needs room to set up. Send site photographs and a plan before delivery is booked.

In almost every Australian council area, yes, and a two storey structure often attracts extra scrutiny on height, overshadowing and privacy even at this small size. It is built to order to NCC Class 1a requirements, with compliance documentation supplied, but the application is your responsibility and approval cannot be guaranteed.

Not as standard. A kitchen, bed and other fit out items are factory options confirmed in your quote. Specify them at order so they are installed before the cabin is sealed and loaded, because retrofitting a kitchen into a finished two storey unit on site is far more disruptive and more expensive.

A reinforced concrete slab or piers, engineered locally to your soil classification (the site test that grades how much your ground swells and shrinks with moisture) and wind classification. The A frame concentrates load along two lines rather than spreading it evenly, so the footing design matters. Your builder sets it out to the drawings issued with the order and cures it before the delivery date.

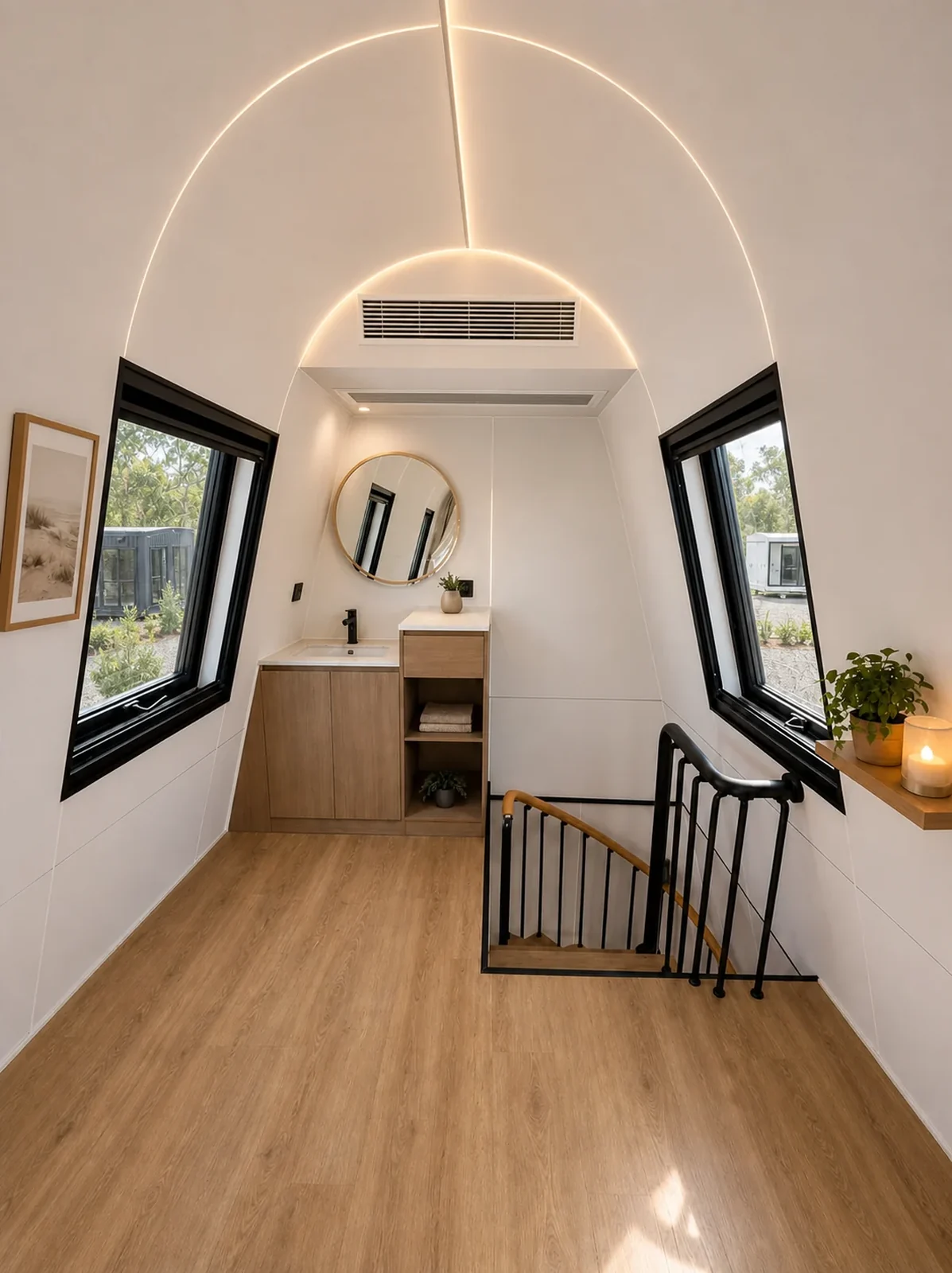

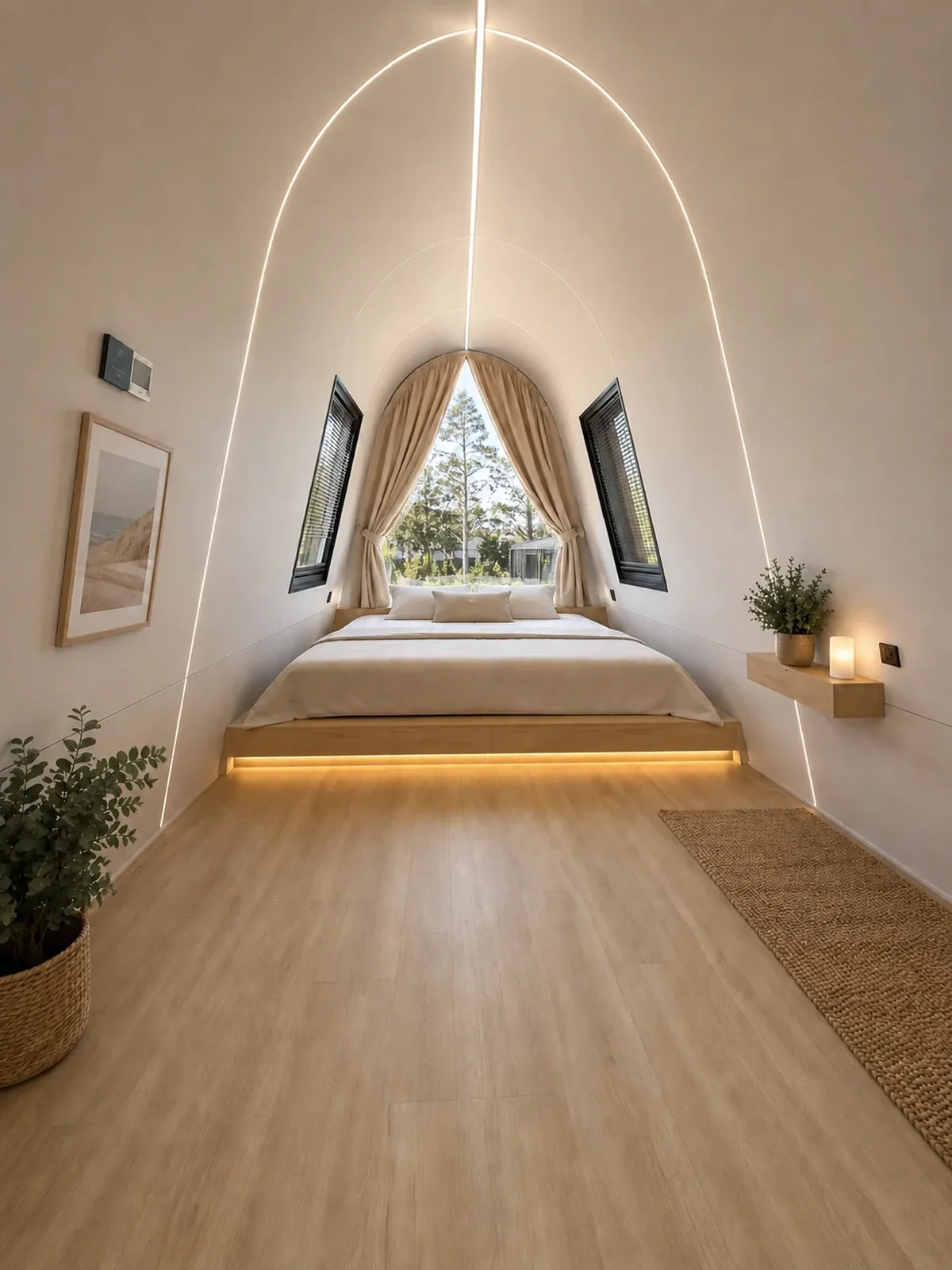

A stair leads to the bedroom loft above the living room. Stair going, tread and headroom requirements under the NCC apply, and some certifiers look closely at compact stairs serving a sleeping area. Raise it with your certifier early, and use the supplied documentation as the basis for that discussion.

The dual reverse cycle air conditioners are sized for the tall glazed volume, which is why there are two rather than one. On a hot west facing aspect, external shading, an awning or planting still makes a real difference. Tell us the orientation at quote stage so glazing and shading can be specified sensibly.

Warranty duration, covered components, exclusions and remedies are confirmed in your quote and order documents, with claims handled through Future Modular Homes. Cover assumes the cabin is set on the specified footing and connected by licensed Australian trades, so keep the compliance documentation and the commissioning records from your trades with the building file.
