MD115S Container Fit Open Plan 11.5m

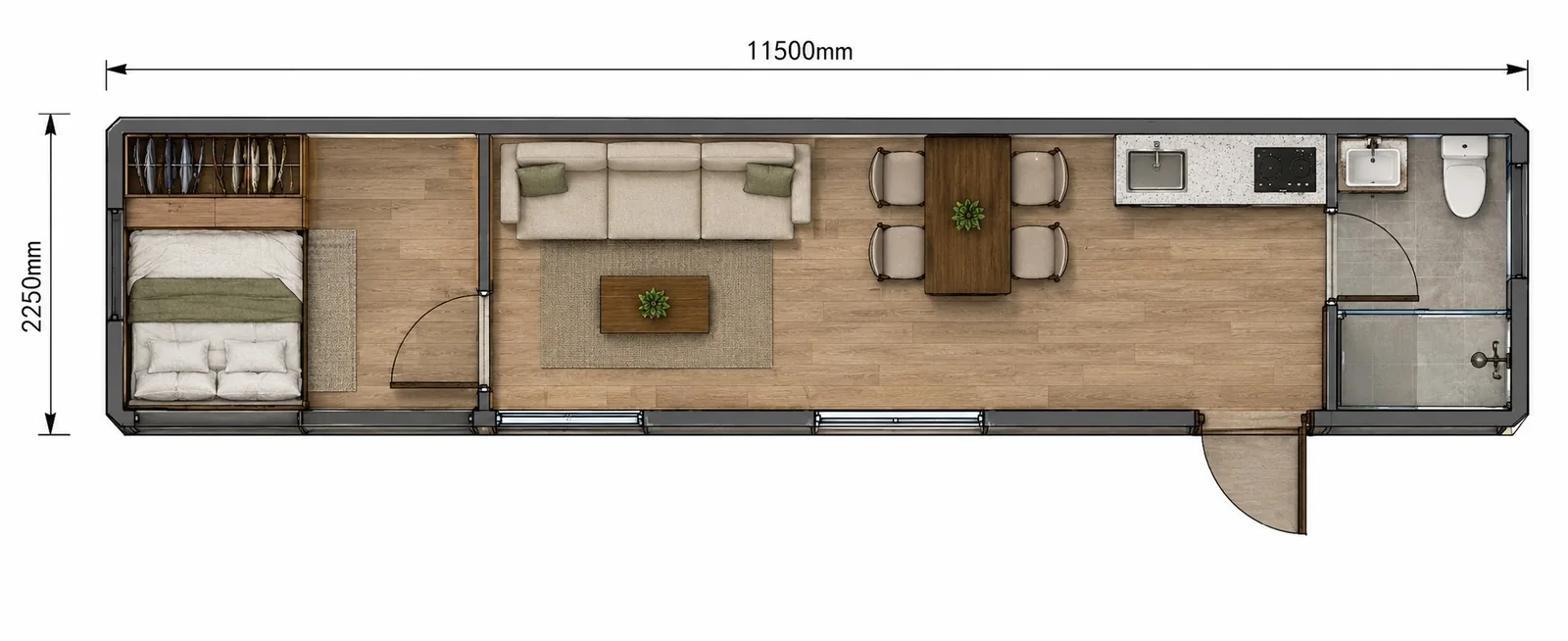

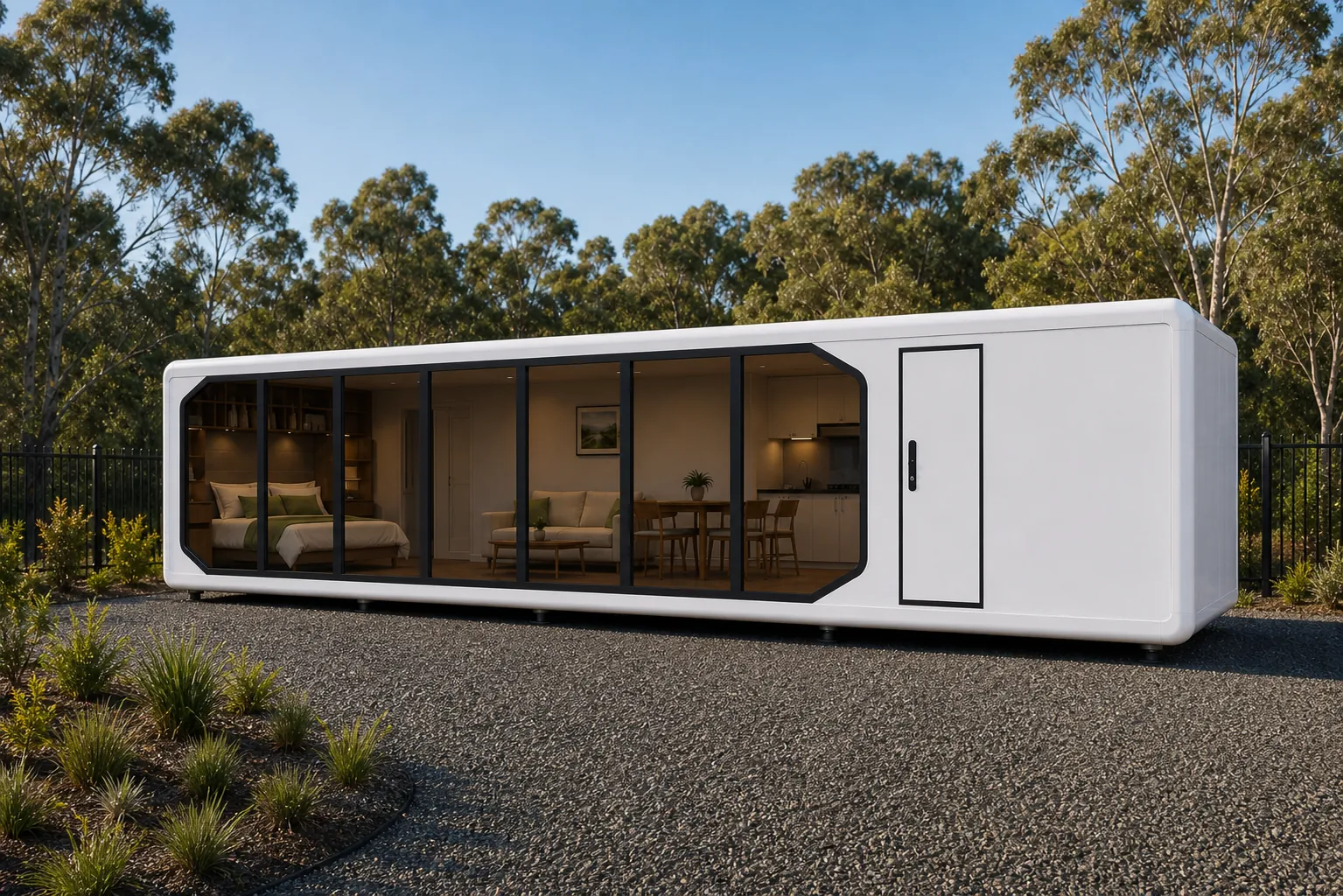

Same length and same 2,250 mm container width. This one is a smooth one piece white capsule with a single bedroom and bathroom at one end and open living, dining and kitchen along the rest. The other is a panelled shell with a bedroom at each end. Pick this for the biggest open living zone, the other for two private rooms.

Yes. At 2,250 mm wide it loads inside the box, where the clear internal width is about 2,340 mm, rather than riding an open flat rack, so it travels at standard container freight rates despite its length. The 2,450 mm external height also sits comfortably within a high cube container (a shipping container with extra roof height).

Yes. The bathroom is standard and includes a shower, toilet and vanity, positioned at the bedroom end of the plan so the wet area services are grouped together. That grouping also keeps your plumber's work on site simple, since the drainage and water connections all come out at one end of the home.

That is a decision for your council or certifier, not something we can guarantee. It is built to order to NCC Class 1a requirements, with compliance documentation supplied. Secondary dwelling rules, minimum site area, setbacks and floor area caps differ between councils, so check the controls for your zone and block before you place an order.

A reinforced concrete slab or screw piles set out to the bolt pattern drawings, cured before delivery. On the day you need a firm truck path for an 11.5 m load, a level crane pad within reach of the drop zone and clear air space overhead. Send site photographs early so access problems surface before freight is booked.

Production typically runs for around 20-30 working days once the specification is settled, then sea freight to an Australian port typically takes around 20-30 transit days, including customs clearance, quarantine inspection and the final road delivery. Firm dates are confirmed in writing with your order rather than quoted as a range over the phone.

The home arrives with the shell, glazing, kitchen, bathroom and internal fit out complete. Footings and site works, decking, freight, duty and GST, crane hire and connection to power, water and sewer are separate. Your licensed electrician and plumber complete the connections once the home is levelled and fixed down.

Warranty duration, covered components, exclusions and remedies are confirmed in your quote and order documents, with claims handled through Future Modular Homes. Cover assumes the home is set on the specified footing and connected by licensed Australian trades, so keep the compliance documentation and the commissioning records from your trades with the building file.
